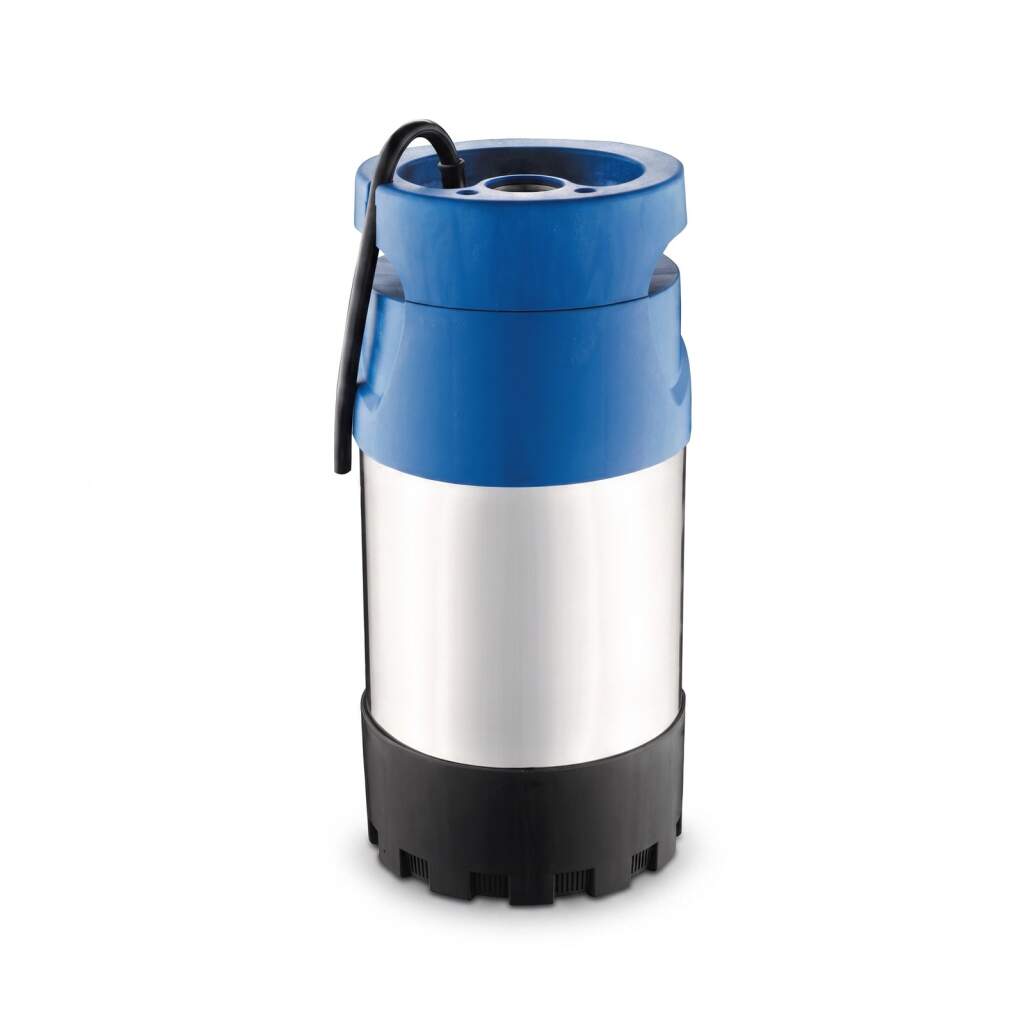

AquaKing Submersible Pump Q800103 5,500 l/h

General Information

The AquaKing Submersible Pump Q800103 is a powerful submersible pump developed by AquaKing for efficient water management and liquid transfer. Designed as a reliable water pump, it is well-suited for use in irrigation systems, large nutrient reservoirs, and water storage tanks. Operating while submerged directly in the medium, it delivers rapid and effective water circulation and discharge.

Performance and Pumping Technology

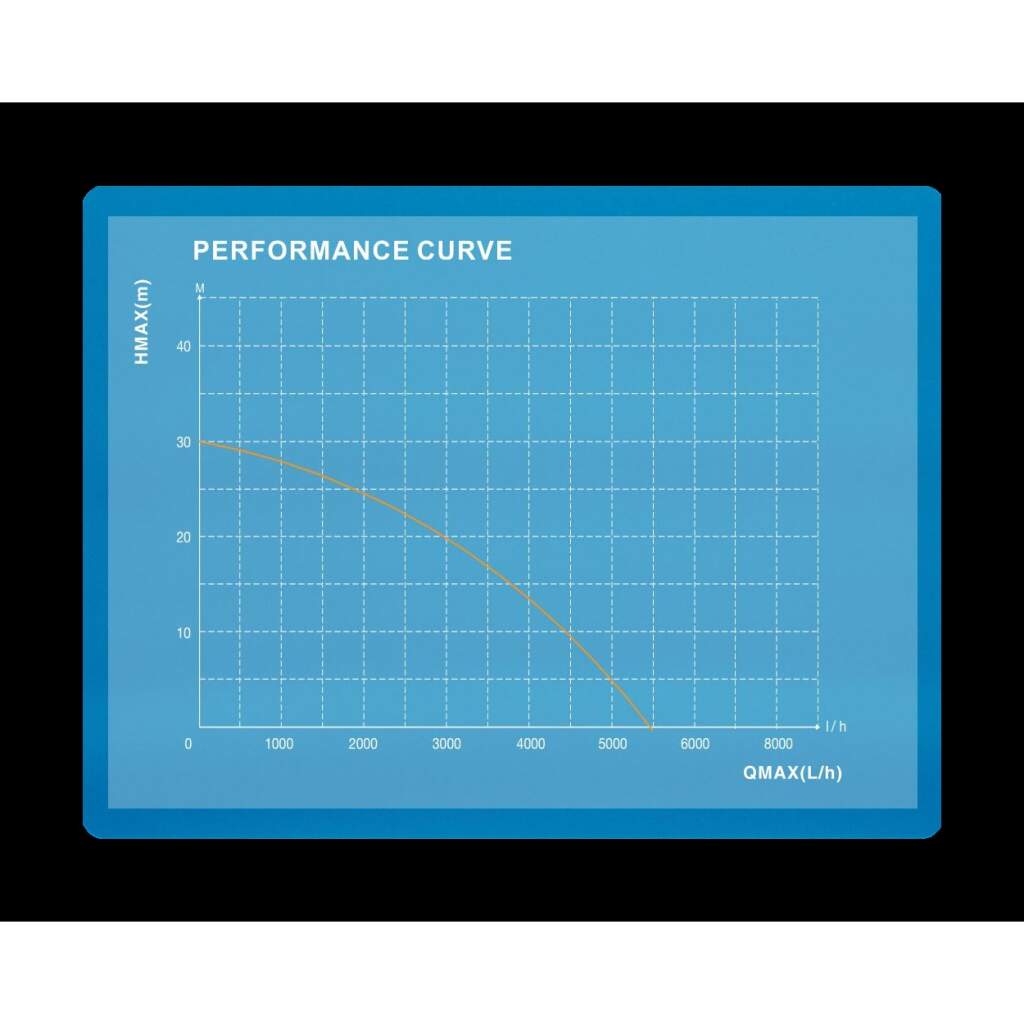

Delivering a maximum flow rate of 5,500 l/h, the AquaKing Submersible Pump Q800103 provides high capacity for demanding pumping requirements. Powered by an 800 W motor running on 230V and 50Hz, it generates an impressive maximum delivery head of 30 m. This significant head capability allows water to be pumped across large vertical distances. The pump supports a maximum submersion depth of 7 m and handles soft particles up to a grain size of 0.5 mm.

Materials and Build Quality

Featuring a durable housing with an IPX8 ingress protection rating, the AquaKing Submersible Pump Q800103 is fully sealed for submerged use. Its solid design ensures stable placement inside reservoirs, draining water down to a residual level of approximately 5 cm. The pump is specified for handling water up to a maximum liquid temperature of 35 °C.

Installation and Operation

Connecting the AquaKing Submersible Pump Q800103 is straightforward using its 1-inch female threaded connection. Equipped with a 10 m power cable, this submersible pump offers excellent flexibility when submerged in deep tanks or water butts. Once positioned inside the reservoir, operation begins as soon as the unit is connected to the mains power supply.

Cleaning and Maintenance

To maintain consistent operation, the intake area of the AquaKing Submersible Pump Q800103 should be checked periodically and kept free of debris. Preventing solids larger than 0.5 mm from blocking the inlet ensures optimal performance. After pumping plant nutrient solutions, flushing the unit with clear water helps prevent mineral deposits and fertilizer residue on internal components.

Suitable Applications

The AquaKing Submersible Pump Q800103 is suitable for large nutrient tanks, water storage containers, rain barrels, and grow room irrigation setups. Combining 800 W power with a delivery head of up to 30 m, this water pump offers an effective solution for growers needing fast water transfer or vertical pumping capabilities.
